More trimming and gluing!
Thanks to Ted Taylor for the spare rubbing strip that I was missing. I cleaned it, shortened it and popped it in to complete the back cover for the rear seat. Interestingly, when I was trying to work out the best way to shorten the strip, I looked at the originals and they all seem to have a "hand finished" look at the end, much like a whittled down pencil. I concluded this was probably how they did it at Carbodies, so I took my stanley knife and whittled away! It looks just as good (or as bad!) as the originals now. Next piece of trim, one of the sections of the boot floor. Same as all the others, dull aluminium strips, dirty rubber infills, awful carpet.
Remove the strips, drill out the pop rivets and pull of the manky old carpet.
It was fairly easy to measure, centre and glue the new carpet into place. The corners are more of a challenge and this piece has a strip of vinyl to tuck under for the spare wheel section.
Whilst it was drying I polished up the aluminum strips, cleaned the rubber infills and then reassembled the whole thing. It does take time to do this right, this piece took about 2 hours from start to finish, but I think the end results are worth the time.
Next was to fit the trim board to the back of the rear seat. It slots into place and is held in place by 6 screws. These are right at the edges, hence before I couldn't glue the whole things down. With the screws refitted I could then finally glue down all the edges.
Put that piece to one side to dry and I started on the tank cover. Same as usual, horrible original faded carpet.
I did the tank filler neck cover first, this was probably the easiest bit I have done so far!
This bit was interesting. This piece has a metal ledge pop riveted on to support the next trim piece which is the spare wheel cover. The vinyl wraparound has to be sandwiched between the board and the metal plate, whilst keeping it in the right place. Tricky, but I think I got it.
I could then glue and pull the cover over onto the front, and then trim the corners. Glue EVERYWHERE!
This piece will take some drying so I put it away to dry overnight. Light was fading at this point so I deiced to fit the rear seat and the trim panel behind it to get them out of the way and somewhere safe. I decided the car was probably the safest place for them. I am so pleased how this looks. Its been alot of work to get to this point and I think it looks superb. I'm sure a professional trimmer could have done a better job much quicker, but the satisfaction of doing it all myself was worth it.
posted by Alan Chattertonhttp://firstname.lastname@example.org 03rd November 2013 5:15pm gmt
Had this afternoon working outside on the car. Glorious sunshine meant I could get on with some bits! First of all I got out the angle grinder and cut some slots in the zinc plated metal spacers I found. Then pulled the quarter bumper away, slotted them in and tightened up the sides. Bumper is now fitted as best as I can get it. Then it was onto rear seat belts. I had bought a set of Securon 264 belts as discussed on the Register Forum as being long enough to fit them "CRAJ-HOE" style!
The centres were easy, the original blanking bolts I had already undone a few turns and left to soak for a few weeks.
I had bought some FIA spec seatbelt spreader plates to put under the inner arch. I measured off Colin's picture and put them where I thought best. Drilled some holes, put the plates on and tightened them up. Then removed the blanking bolt from the inner arch for the other end and finished bolting them in. Last job was to rotate the dials to bring the locking mechanism into play so they retract properly. I just hope they are long enough to go around the child seats!!

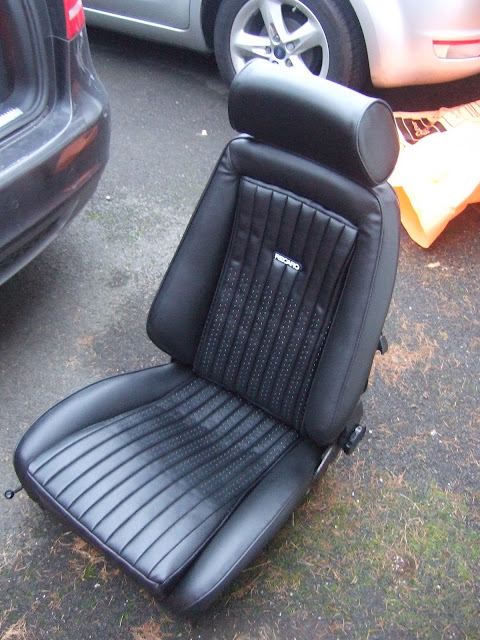

Then I could clean and refit the lower seat base. The carpet on the underside of this is perfect, so no point disturbing it. The carpet on the back of the seat back on the other hand........ euw!!! So, time to disassemble the rear seat. Lifting the edges of the carpet reveals 6 screws which hold the back board to the seat. Undo and remove the rear trim board.
........... to reveal the original manufacturer's sticker!
Then removed the rubber trims from the alloy frames, and then drilled out the pop rivets holding the trims to the wooden trim board.
Flip it over and then undo the 4 set screws and nuts that hold the chrome catch plate to the board. Undo the clevis type pins which hold the catch to the pull cord.
Then remove the carpet from the back and chuck it in the bin!!!
The new repro carpet fits quick nicely actually. Its even bound on the edges, pretty good considering the issues I had with the main carpet sections! I fitted and centred it, then folded and glued one half,
then the other half to keep it all square.
Now comes the time consuming bit. Polish the alloy trim, punch the holes from the back, line up and pop rivet back into place. The fit the rubber trim. Not quite as exasperating as doing door seals, but pretty close!
I find that I am one short trim piece missing, anyone got a spare short rubber insert going?
Almost finished, chrome catch refitted. Just got to do 3 rubber trims, but time was getting on and dinner was calling!
All in all, a good productive day!
posted by Alan Chattertonhttp://email@example.com 06th October 2013 6:42pm gmt
Wiring the Alarm and carpet painting
I managed to grab an hour this evening, don't the nights get dark quickly now! Still, managed to get a few things done. The next trim pieces inside to do are the sides of the front footwells and the parcel trays. Before I fit those I have some major wiring to do behind them, so I started that this evening.
The wiring is for the Alarm/Imobiliser and Remote Central Door locking system I am fitting. Running wires behind trim is always a pain, so easier to do it now before I refit them. First up hiding the wires for the infra-red sensors on the A posts. Then I found the ideal place to put the Red flashing LED. There was always a hole in the grill top and there is no speaker there due to the advanced "Quad Speaker System", so I popped it in the hole. Better then drilling another one I thought!
Then I have this to deal with!! I need to find all sorts of feeds and connections so its just a case of working through each wire and finding a neat route. Looks awful, but its not finished yet!
With the light fading I put another couple of coats of black carpet dye on the rear arches. They look so much better and nearly close enough I think.
posted by Alan Chattertonhttp://firstname.lastname@example.org 02nd September 2013 8:30pm gmt
More carpets and rear bumper (again!)
Monday evening spannering session! Managed to get to the Bolt Shop, and bought a few bolts I was missing. Got the missing one for the passengers seat, needed to be a little longer due to the extra layer of underlay I had put under the carpets. Popped the passenger seat back in. Moving on to the rear section, timmed and glued down the final side piece on the sills on each side, then put the rear treadplates back on. Still an awful fit, but 90% of it will be hidden by the rear seat.
Next was the old problem of the rear arches. The original stuff is formed into a curve, the repro rubbish is a flat piece of carpet. When I stripped the car the rear arch carpets were in very good condition, but faded from black to a light brown (they all do that Sir,..........!) but, knowing how bad the repro stuff is and not wanting to tear them, I decided to leave them in place and mask them up during the whole process. Now they have been cleaned, they are still as good as I thought. So, a couple of light passes with a spray carpet dye, and we are getting somewhere. Another couple of coats needed but you can see where I have done, and compared to the black carpet next to it, its pretty close after 2 coats.
Now onto a job I have been putting off for ages. When I put the towbar and rear bumper back on just before the NEC I knew something wasn't right, but couldn't put my finger on what it was. I then realised that the bolts that hold the towbar drop plate to the bar where the wrong size, too small and the bolts allowed the whole assembly to move. Not good as I am going to tow with this. But, getting the rear bumper to fit was a right pain due to the flared rear arches and I wasn't looking foward to taking it all off again. Bradley popped over to help as its really a 2 man job. These are the offending little bolts.
We whipped the bumper and bar off, changed the bolts and then popped it back on.
For some reason, this took about 4 hours last time we did this, this time........ 15 minutes flat!!! So much better, no movement, larger diameter bolts that fill the holes now. I am feeling much happier about this now.
Next problem. As we tighten up the bolt to the quarter bumpers, the leading edge is getting closer and closer to the bodywork. Its all due to the flair of the rear arches and we had to stop before it was tight as it was going to hit. What I need is a couple of small spacers to drop between the body and the bumper bracket to hold the quarter bumper off the bodywork. I am NOT going to remove these bolts again, so I planning on getting some square section zinc plated steel with slots cut in so I can pull the bumper out, slot them over the bolt then tighten them up to hold it secure.
Restoring modified cars,............... sigh.......... one step forward, 3 steps back!!
posted by Alan Chattertonhttp://email@example.com 12th August 2013 10:46pm gmt
Carpets Part II
Once again, girls are still with Sam's parents as she is away in London for the day, so I get an evening to myself again! Managed to get home and outside by about 7pm, so I knew it was a few small jobs before it got dark. First off was to fit the newly painted tailgate trim. Looks great! Then onto the main carpets. You will remember how I cussed the awful quality and fit of the repro carpets I got from Lincolnshire. Miek Weaver very kindly gave me a NOS main section and I have some NOS footwell carpets in stock so I knew I could make a better job! First of all, with the seats removed, have a look at these quality items........... dreadful!!!
Ooops, upside down picture........ oh well, you get the idea...... this is the new piece of carpet.
Fitted in minutes, few minor adjustments. It doesn't fit over the rear tranny tunnel as its now a different shape to the standard car due to the extra room for the Stag silencers. But, far better than before.

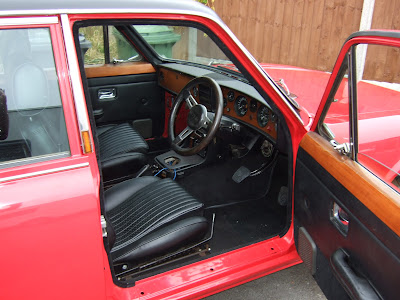

Seats going back in, can't put the passengers back in as I remembered I was a bolt missing. Needs to be quite long so I have measured it and need a trip to the bolt shop!
2 hours well spent I think!
posted by Alan Chattertonhttp://firstname.lastname@example.org 06th August 2013 8:52pm gmt
Headlight wiring again!
Once more I manage to find a couple of hours to work on the car this evening. Only problem was, it was persistently chucking it down! Not really suitable weather for taking the car out of the garage and continuing with interior work!
I looked at my "to do" list and found a nice simple job I could do. In my haste to assemble the front end fo the NEC I had managed to route the new wiring loom for the headlights (relays now) in the wrong place, so it hung down rather than being clipped up. So, I thought I would resolve that.
Needed all the new wiring carefully labelling, snipping, re-routing properly and then reconnecting the wires with proper connectors and heat-shrink tape. Looks much better now and doesn't have wires hanging infront of the radiator!
I also managed to re-align the main beam headlamp bowels as I have managed to fit them wrong so that the lights were slightly on an angle. The "Halogen" lable now sits properly.
It has uncovered another problem though. I found this wire on the main loom in the middle of the radiator. What is it for? Looks like original as its in the loom, but I can't seem to find it on the wiring diagram! Any ideas?
EDIT, just found out via the 2000 Register Forum, its a feed for front fogs if fitted. So, I'll blank it off and tuck it away.
posted by Alan Chattertonhttp://email@example.com 05th August 2013 9:39pm gmt
It's been a while............
Well, that was a longer break than I expected!! I just have not found any time to get Libby out of the garage and do some work. What with the girls, work and Sam's work........ not to mention putting our house up for sale, has meant that time has just slipped by. The front door tread plates were horrible and bent and Andy Roberts had kindly donanated a good used pair with no dents. So, a polish and they fitted nicely.
However, its the school summer holidays so it means on a Monday evening the girls are staying at Sam's parents for the night...... so I get a night off! Home at a sensible time, so I vowed I would spend some time on the car even if it was only an hour!!
I pushed her out of the garage and spend a while looking and thinking and trying to work out what ought to be done next.
Then spent about half an hour unseizing the rear seat belt mountings so I could glue the carpet back around them.
Then I cut and made the rear crossmember carpet fit, got that looking somewhere near fitting (bloody Rimmers carpets!!!) and glued it in place.
I found from stock a NOS tailgate trim panel, but in the wrong colour. Masked up the trims and sprayed it with black vinyl paint. Left it to dry for a while and hey presto..........
........................a black one!!
Ran out of daylight, not much done but every piece put on is one less to go!
Other changes since I last blogged, said farewell to my faithful Audi a couple of months ago. Slightly upset at seeing it go after 139,000 miles together, but also because this was the car we brought the girls home in.
But, its not all bad as this is its replacement!!
Promise, more later (without such a big gap hopefully!!)
posted by Alan Chattertonhttp://firstname.lastname@example.org 29th July 2013 10:06pm gmt
I have had many messages, texts and emails over the past few weeks asking why there have been no blog updates for a while. People knew I was working frantically on the car and wanted to know what was happening!
Libby had been invited to be displayed on the Triumph 2000/2500/2.5 Register club stand at the NEC Classic car show, and I wanted to move her along quite a bit so it looked more complete for the show but I decided I would like it to be a bit of a surprise as to how far I had got. Even the Register Show Organisers didn't know as I wanted to keep them in suspense!
But now the show is over (and what a wonderful show it was!) here is the work in the days before.
The list sounds quite short, but the hours it took...........ooooooooh! Several late nights were spent on this and even more £££, but its all worth it!
Headlamps, wired in with relays, new Cibie Oscar units fitted, grill polished and refitted.

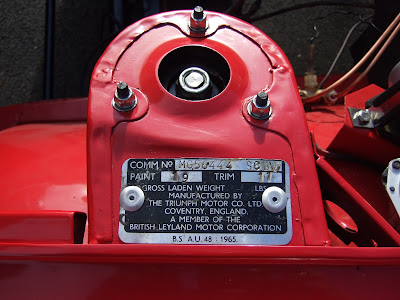

Original chassis plate cleaned and refitted. Last section of brake pipe fitted, brakes bled, handbrake set (to stop it rolling off the stand!) Towbar wiring laid in, extra heavy duty cables front to back to allow for split charge relays for towing a modern caravan. Original towbar refitted. After much swearing the NOS rear bumper was fitted. Slight alignment issues due to the flared rear arches. Its on, but needs fettling with some spacers on the quarter bumpers as when tightened it will touch the flare of the arch at the back. Good secondhand front bumper fitted with new stainless bolts and brackets. Then cleaned and polished by Bradley! Front carpet sections fitted and newly trimmed original Recaro seats refitted. The carpet set I bought from Rimmers as they had stock. I was shocked by how bad this was, it just does not fit! Mike Weaver to the rescue so I now have a NOS main section, along with my NOS front footwel carpets to fit later this should sort the problems out. For the moment the badly fitting Rimmers set are in for the show. At the NEC I had one of the Rimmers managers look at the carpets and he got short and terse words from me about the awful fitting of the carpets. Clutch pedal a bit high........... due to no clutch master cylinder fitted yet! Temporary blue wires by gear lever (missing!) to allow a slave battery to put the drivers side electric window up and down for loading on and off the trailer. Rear complete with badges, new number plates (With Atlantic Garage details on the bottom, nice touch I thought!) and the new Stainless steel Stag large bore tailpipes fitted.......... for effect for the show only, obviously no exhaust fitted yet until the engine and gearbox are in. Loaded on the trailer ready to show! at the NEC...... under the spotlights it did look a little orange, but that is just the weird lighting there! As usual, many thanks to Bradley for the hours of help. To Colin & Amanda for inviting me to display it and giving me the push needed to get it moving along at this rate, to Mike Weaver for refitting the windscreen trim at the show and providing the NOS carpet section, and to everyone at the show who appreciated the hard work................ its you lot out there giving me the encouragement to finish this, thank you!
posted by Alan Chattertonhttp://email@example.com 19th November 2012 11:23am gmt
Glass fitting day today, to get it watertight ready to go to the NEC. Mike Weaver very kindly offered to come and fit my windscreen as he's done quite a few now and has the knack (and the tools!). First thing this morning got the "shop" ready. Car, Glass, Seal, Silicone lubricant, tape, white spirit and cloths. Brian also came round to help to have a look at the estate side windows as I just couldn't see how they would fit.
I was amazed how quickly it took to actually get the screen in. Most of the time was spent re-doing the piss poor prep work I'd done............. okay, so now I know ALL the old glue has to be removed from the A Post trims first!
Before long it was in, then started the really nasty job of injecting the sealant in between the glass and the rubber. Not a nice job, but not as bad as the clean up afterwards. I have some more detailed cleaning to do after a week or so when the sealant has gone off properly, but apart from that its in and looking great!
The side windows were more of a puzzle. We now think that the modifications Del Lines did to the rear wings may have changed the profile of the window, they just did not want to fit. In the end some brute force and ignorance was needed. Brian and Mike supplied the brute force, and I helped with my ignorance!
Just got to do some build up work with silicone on one corner where we tore the rubber a bit.
Trims polished and on.
All glass in, car watertight.
Huge HUGE thank you to Mike Weaver and Brian Chrimes for today, there as no way I could have done this job without them!
posted by Alan Chattertonhttp://firstname.lastname@example.org 27th October 2012 6:00pm gmt
NEC Prep Pt 1
NEC Prep? What's all that about then? Well, I have been persuaded by the show organisers of the Triumph 2000/2500/2.5 Register to have Libby in all her unfinished glory on the club stand at the Classic Car Show at the NEC in November. Planning with diaries and we find I have 3 days clear to work on the car between now and then. All the plans have been made with trailers, days off work and borrowing Craig's Range Rover again to help move it, so it would be good to make sure I do the things required to get her there!
Day one today. Sam's on a day off, so she took the girls to her parents for the day, so onward!
First thing, it would be good to have a handbrake that works so the car doesn't just roll off the stand! One final piece of brake pipe to make and fit, that's done along with fitting the front half of the new handbrake cable. Next job for later is to bleed the brakes, then I can set the handbrake and the car should stay put! Towing the car on a trailer without a bonnet catch could be a bad idea, so that was fitted and the cable reinstated. I had intended to fit this after the engine went in, but its only 4 bolts to take it out again when we're ready for that. Then spent a pleasant hour setting the bonnet height and getting the catches lined up.
Next job, glass. If it rains whilst its on the way there or back it would be bad if the car isn't at least watertight! So, fitted the tailgate glass. Had a NOS screen seal and a NOS chrome trim piece. Swine of a job, very fiddly, but I'm very pleased with the result. Just needs cleaning to get rid of all the white stuff you get on old rubber, but its in!
Then it was back to fitting the headlight assemblies. I wasn't happy with what I had done last time so I took them out, fettled and refitted properly. The issue is that the pop rivet gun (even the extra long one I bought to do the job!) couldn't reach the rivets as the out frame of the assembly is in the way. I had previously removed the front frame, riveted, then replace the front. But I couldn't get to the split pin that hold it together properly so they were a bit loose. This time I removed them, did the rivet up right, then bolted them in place instead. Much better.
The windscreen is hopefully being fitted next weekend, so in readiness for that I fitted the A post internal trims. One of the quickest and easiest jobs ever!
Next problem... front windows. In order to get the car on and off the trailer and onto the stand I need to have the drivers window open to move the steering wheel, but then close it again for the travelling. Only problem is they are electric and the electrics are not finished enough to connect a battery to the car. Previously when fitting the windows the door trims were off so getting power to the motor was easy. So, bit of investigating by the window switches and I found the feeds to the windows. Couple of short wires made up, and now I can put the window up and down with a jump pack! Got to do the same with the sunroof next too.
Final job of the day done in the garage as light was fading. Fitted the clips round the rear window for the stainless trim. I was planning to fit the estate glass today but after fitting the new seal to the glass it really doesn't want to fit in the hole anymore! Hoping its just me being daft, but I am also hoping for some expert help next weekend from the expert windscreen fitting who is coming to help me! When I agreed to have the car at the NEC, I wrote a list of things to do, things to buy, things to paint and things to drop off and be powder coated. So, the windscreen top vent trim, gearbox cross member and fan shroud are at the powder coaters, but as for the rest of my list............ I don't seem to have got very far! I think I may have been optimistic in what could be done, but right now as long as the glass is in and the brakes work....... I'll be happy at that!
posted by Alan Chattertonhttp://email@example.com 20th October 2012 7:29pm gmt
Door Seals......... Grrrrrrrrrrrrrrrrrrrrrrrrrrrrrr!
With the prep work on the Acclaim done for the RBRR, I found I had a few hours to spend on Libby today. Managed to get about 4 hours on her today. Problem was, I knew what I had to do next.............. Door seals on the N/S.
Using Repro door seals which are slightly too big is a right PITA. I'm trying an experiment. Chris Witor seals on the front and Rimmers on the back. CW's are much better quality, but seriously hard work to fit. Rimmers are not such good quality, but marginally easier to fit. So, I can keep on eye on them as the years progress and see which ones are best.......... or until I find a set of NOS ones!
It takes hours per door to do as you have to feed it into the channel 5mm at a time with a small thin blade. Corners are worse, and every 10 minutes I have to stop as my hands get cramp!! Its a HORRIBLE job and without doubt, to date, the worst job I have had to do. My aim was to get both N/S doors finished today and then all 4 are done and over with.
Only took an hour and a half to do the rear one (Rimmers, slightly softer) Then a quick clean, vapour barrier on, door card on, window winder handle on, which for some reason went on first time (which is rare!) It then took a further 2 hours to do the front door. I had already done the top part of it, so it wasn't as bad as doing the whole thing from the start.... still, so glad this bit is over! Vapour barrier, door card, done. Time to put it back in the garage, tidy up and then its bathtime for the girls before dinner. It's getting there.......
posted by Alan Chattertonhttp://firstname.lastname@example.org 16th September 2012 4:23pm gmt
RBRR 2012 Prep
So, day one of RBRR 2012 Prep on Arnie, my new 1982 Triumph Acclaim CD.
First off was an MOT, which it flew through yesterday with a couple of minor advisories, but nothing major at all.
First off was to find out why the O/S Headlight stopped working halfway through the MOT? Well, perhaps this is the reason?
So, new bulb and all is well. I did want to uprate the headights, but these old types of bulbs aren't available in uprated so I'll have to stick with these. I may be considering some spot lamps on the bumper now though.
Next was the N/S Headlamp, which was a little dim. The reflector was rusty, but I had a new one in a box in the boot that came with the car! (Thanks Rob!) So, little bit of fiddling and in it went. Job done!
Next problem to address was the Temperature Gauge. It didn't work at all. I was pretty convinced it was the sender, so after breaking my arm in 5 places trying to reach it, and then after removing half the inlet manifold, I found it. I was planning to pull the wire off and earth it to check and see if it was the sender, and as I pulled the wire off, the middle of the sender unit came away in my hand....... that'll be the problem then! Again, thanks to Rob there as a new one in a box in the boot, on it went. Whilst I was doing this I decided to drop all the coolant, flush the rad through and then refill with new antifreeze. What came out looked pretty gunky, so I'm glad I did this. All done, back together and running nicely. Got it up to temp, fans kicked in, all good.
Next thing to play with was the stereo. The original unit was still in the dash, with a modern one slung underneath. Problem was, I kept catching my foot on it as I used the clutch, so I took it all out, and put the radio where it should be (kept the original one just in case though!). Then where the stereo used to be I then put in a 4 way charger pod. 2 phones, Sat nav and an ipod dictates we need more than one. Works and looks great now.
I then fiddled about with replacing the saggy sun visors, (again, new set in the boot!), new wiper blades (yep, out of stock in the boot!), repairing the rear window as it had come out of it winder, and going over everything I could think of trying to find a fault.......... I couldn't! It is as good as we all thought.
I then jacked up the front and took the front wheels off ready to go and have the new tyres fitted I have got. Whilst I was there I checked the pads, 75% remaining, so no issues.
Bradley popped over and we spent a happy half an hour clay barring it and getting the shine back. Needs a quick polish and that will be done.
All that's left on the list is to have the new tyres put on, oil and filter change (got the oil but no filters in stock, ebay here I come!) put the stickers on, polish it and we're ready to go!
If only all RBRR prep was this simple!
posted by Alan Chattertonhttp://email@example.com 02nd September 2012 6:03pm gmt
"School's out for summer............!" Epic song, but true as first day of school summer holidays for us here in Redditch. This means my usual Monday evening routine of school run, dinner, bath and bed for the girls is off for about 6 weeks. They are staying with Nanny & Grandad on Monday nights for the next few weeks. So, sun is out, finished work at a sensible time for once, girls away, wife at work.......... hmmmm, pass me the tool box! Then clean up and refit the indicator and sidelight assembly.
First job, clean up and refit the other front indicator light.
How many indicators do you need on a car..........4 per side?!!? With hazards on I have told it will look like a Christmas tree!
Then moved to the rear and fitted the n/s rear light assembly. Then, confusion hit.
I know my car is modified, but I didn't expect to find wiring that I couldn't explain/remember what its for. After connecting up all the rear lights I am left with these wires, (tape wrapped so probably not factory) going from behind the rear light up the D post into the roof. What are they for?!!? No idea! The fuel pump is driven off the original PI pump wiring, so its not that. The only thing I can think of is the original rear fogs, which I am not refitting....... but why take the wiring up over the roof?!?! Need to do some continuity checking with the switch, another day!
Then started to refit the front headlight assemblies. Got two in, fiddly, fiddly, fiddly, STUPID things they are. (doesn't help when halfway through fitting the 3rd one, you realise you have fitted the first 2 upside down and you have to drill all the rivets out and start again........ Grrrrrrr!
Light fading, dinner calling....................
posted by Alan Chattertonhttp://firstname.lastname@example.org 23rd July 2012 10:24pm gmt
Managed to grab a couple of hours outside this afternoon, dodging the rain showers! Dropped into the autofactors this morning and got the front brakes pipes made up, fitting didn't take long with the new correct double pipe clips.
Not got long enough to get involved in any long jobs, so I did lots of little things instead.
First off, got the drivers door plastic membrane on, and the door card cleaned and fitted. Then measured the hole to find the size speaker I need....... 5.5" should fit nicely I think.
I managed to find a second hand tailgate bolt, one got lost somehow. Fitted that, all the bolts have coloured paint on them and we elected to paint the inside of the tailgate satin black. So, the plan later is to carefully mask and flick some satin paint over the bolt heads to make it look right.
Not a nice job this, the wiper spindle needed changing as I stripped the threads on the original one. Managed to source a good secondhand one which I had cleaned up. This mean removing the glove box and the screen demist vents, then removing the wiper motor and then withdrawing the drive of the wipers. All went quite nicely, new one fitted and then inserted the drive back with plenty of new grease. All good now!
I noticed whilst I was doing this that the screen vents are in very good condition. They usually close up and warp, but these still look like they should. Guess this is what happens from being stored in a dark garage from 1979 to about 5 years ago?
Then I cleaned and polished the light fittings and fitted the sidelight and wing indicator. They are the original ones, just cleaned up with new gaskets and bulbs. Cleaned and reconnected using the original bullet connectors and I have to say, looking good!
I was on a roll then, so I fitted the NOS rear lights I sourced, connected up using the original bullet connectors again.
Then, it was time to clear away and go in for dinner.
Meanwhile, in Reading, the engine is progressing nicely. I understand that the block and crank are now back from the machine shop...................
posted by Alan Chattertonhttp://email@example.com 08th July 2012 6:33pm gmt
Carbs, Engines, Honda's & Parties!
Life just takes over sometimes! I wonder where the time goes, as despite constant beratings from my fellow bloggers I find that I have't updated my blog for quite some time................ sorry!
Last update I had dropped mine and Andy's carbs off with Andrew Turner for them to be "Turner'd". Got the call last week to say they were ready so I dropped in on the way home from work to collect them. What can I say....... automotive porn..... they are truely amazing. Well worth the money. Anyone who needs any carb work, go to Mr Turner, http://www.su-carbs.co.uk/ you won't regret it!
Feat your eyes on these babies...............
Next to the engine. My friendly engine builder has stripped and inspected the engine and found loads of problems. The issue is that despite me buying what I thought was a known good engine (assuming the best engine to rebuild is one that doesn't actually need rebuilding!) was wrong. It turns out the engine has been rebuilt before....... badly. There are a whole host of bodges that need fixing. Stripped threads in the block, broken allen keys, score marks on the face of the blocks where previous head studs have been butchered to get them off. Ontop of that, the bores are all badly scored and the crank is very worn.
It was taken to the machine shop to be assessed by experts and the news came back even worse. The block was already bored to the max, and would need all 8 bores re-lined, then new pistons. The crank was also already ground, and the crankshaft main bearings in the block were oval and would need salvaging. All this added up to a huge engineering bill that just was not worth it. This meant that the block, crank, most of the rods and all of the pistons are now essentially scrap. Bugger.
Not to worry, Andy came to the rescue again with a known better block and a decent crank. these are now at the engineering shop being worked on. Only one bore needs a liner, and the crank will grind up ok. So, this and a hefty parts bill from EJ Wards and we should be onto a winner. Parts expected back from machining in a couple of weeks. We haven't dared look at the heads yet.................
Onto more mudane matters.............. RBRR2012. Bradley and I are booked in, but as time goes on and I get less and less opportunity to work on Libby, it became obvious that we just weren't going to make it. So, decision time. Do we rush Libby and finish it and risk messing it up, or missing something and end up doing more damage by doing the run, pull out (noooooooo way!) or find another car to do the RBRR in?
Guess what, the hunt was on.
Normally, I would just find another cheap 2000 to do it in, but the prices seems to have gone mad and it means at least £2k to buy a half decent one and then it would need going through properly to prep it. Rob Baker came to the rescue so, Wednesday night saw Bradley and I heading north in his new company Passat to collect Arnie, the Acclaim-inator!
Now, I have to say, I have never been particularly enamored with Triumph/Honda's creation..... but I have to say, it is quite impressive. Ok, so it will never replace a 2000/2500/2.5 in my garage, but as a little run around and an RBRR toy, its amazing.
Rob has spent quite a lot of time and money on this little beastie and it shows. The bodywork is immaculate, the interior is very good (under those horrible seat covers the seats are very good and the headrests are in the boot to reinstate.
Its the CD model, posh....... even has headlight washers!
I love history touches like this, original dealer sticker in the rear window, which matches the key fob. Every MOT back to 1988 which shows the mileage of 66k to be genuine. It needs a set of tyres, some wiper blades, one headlight needs replacing and then a quick service and clean and its ready to go! I have to say it is awesome. Drove back 115 miles at a steady 80mph, and used about £15 worth of fuel!! This is going to be a cheap RBRR for a change!
Over the bank holiday weekend Sam & I had a little party. I turned 40 in April and she turns 40 in July so we decided to have an 80th birthday party at a certain well known local hotel! There was about 100 of our friends, loads of food and the most awesome band ever....... The Garage Band http://www.thegarageband.co.uk/ we can't recommend these guys highly enough, fantastic night and well worth booking!
My big sister and her family made it over from California for the party and it mean that our girls and her two children finally got to meet. It was so lovely to see the cousins all playing and getting on so well together, something we never thought we would see.
We also got a professional photographer to come and take some proper pictures of the children together, thanks Stuart! We are waiting for the pictures to be ready, but he sent us this teaser the other day. This is Milly, our youngest, with our nephew Adam............ she didn't want to play when it came to the photographs, but this one just happened as they do......... I love it!
Me, Dad dancing with the girls!
I also managed to source a new wiper spindle, so that is now ready for fitting. Then its on with door seals, door cards and onto the rest of the interior...... when I get chance.
With Sam now back at work, and working most weekends, my time in the garage is limited...... but, every week I manage to do something, even if its sourcing some parts, or cleaning something ready to put back on.
More news on the engine hopefully in a few weeks.
posted by Alan Chattertonhttp://firstname.lastname@example.org 10th June 2012 12:36am gmt
What did you expect from the title then?! Also, whilst doing some ebay trawling I found the correct sized triple air horns I need. Libby originally had triple tone air horns fitted inside the n/s front wing. They were still there, but looking very sad, so a new set arrived today. Strangely, there is a separate switch in the car for "horns", but there are no standard car horns connected to the normal horn push. I will put a normal set on the indicator stalk, and leave these for fun I think.
I dropped in to see my engine builder and after several discussions about engines, spec and timescales, we got onto the subject of carbs. The carbs on his own Stag engine were very worn and mine were of unknown quality (although they look pretty ok!) we decided we both needed our carbs done properly. So, in the boot of my car now sits 2 pairs of Stag carbs ready to be dropped off at Andrew Turner's for him to work his magic on..............
posted by Alan Chattertonhttp://email@example.com 24th April 2012 4:56pm gmt
After a walk in the park and feeding the ducks, the girls and Sam curled up on the sofa to watch "Toy Story"........ time for me to work on Libby then! Then it was time to move to the horrible job........ finishing the Shutzing underneath. When I did the underneath, I did the front and the back separately....... I now needed to join up the middle and do the centre of the sills and the centre of the floorpans. So, bit of marking, then warm the Shutz up in a bucket hot water and off we go........... didn't take long, but its a horrible job!
The new special rivets and screws arrived from Chris Witor last week (and a new Stainless Steel Strap, bolts and rubber gasket!) so I could finish putting the wiper motor in and secure the washer bottle correctly. Job done.... looks nice!
Then, it was time to move onto the really horrible job............. Cavity Wax. I had bought 5 large 750ml cans of Bilt Hamber Dynax Cavity Wax which came complete with the special long tubes with spray nozzles. When Brian did the sills he drilled some extra holes to allow me to do this job better, they'll be hidden under the tread plates anyway. So, warm the can up in a bucket of hot water and off we go.
5 cans later the sills were well and truely coated, the bottoms of all the doors where done, the inside of the tailgate, the inner arches front and rear, plus a few other box sections and anything else I could think of was done.
However, when I stood back whilst having a cuppa, I notied what I had forgotten....... the sills have holes underneath to allow for drainage, and the Wax was now dripping out all over the drive...... rats.
By the time I got to do the other side, I thought about it see................!!
The marks the end of the really horrible jobs, everything should be fairly clean from now on. Next problem.... wiper spindle threads........ buggered. I was thinking I would have to remove the whole wiper assembly again to get to replace it, but after a bit of gentle persuasion from the back (and a small amount shaved off the rubber grommet!) I got the remaining threads to catch and it did up tight...... result!
Now.......... big roll of polythene...... useful stuff this. I use it for covering and wrapping things in the caravan, (its actually shrink wrap for bricks!) but today it has a different purpose. Now, don't laugh but I remembered when I took the car apart that the rear off side door had no vapour barrier behind the trim panel. This is important as it guides any drips of water from the window seals down to the bottom of the door, and it prevents moisture getting to the back of the cardboard door cards. So, time to make one..........
Yeah, I know.... not exactly original, but hey, it does the job and it won't be see again so who cares!
So, after messing around for what seemed like HOURS trying to get the stupid small pin in to hold the window winder handle on, I can report that one door is totally finished!! Woo hoo!!
I then fed about another 18" of door seal in on the nearside front door (grrrrrrrrrrrrrr!) then time to go in, have a shower, wash my hair 6 times to get the shutz out of it (!) and then have dinner!
A good afternoons work I think....... quite alot finished today!
posted by Alan Chattertonhttp://firstname.lastname@example.org 15th April 2012 7:33pm gmt
Little bit more..........
Little bits done this afternoon. Managed to fit one rear door seal..... what a swine of a job! the front ones are Witor ones which are excellent quality repro ones, but they are so hard to compress to get in the channel. Total of about 2 hours to do the front door.Having found the correct screws, fitted the cover plates on the rear doors.
Fitted the repainted wiper motor, and then popped on the spindle grommits and new chrome nuts.
then fitted the rear door seal. This is a Rimmers Repro one. Not as good a quality as Witors, but easier to fit...... this one only took an hour!
posted by Alan Chattertonhttp://email@example.com 31st March 2012 7:43pm gmt
Little jobs............ they take the longest!
I had about 3 hours to spend on the car today, and the next two jobs to do are big ones that will take longer than that (estate side window fitting and finishing the shutzing of the centre floorpans.......... so I was on the lookout for some smaller jobs to do.
Found and rescued some trim clips to fit the final piece of waistline trim on the nearside rear door. Fiddly as all of the holes needed careful drilling out, but we got there in the end. The rear doors needed the wiring loom for the central locking fitting properly. Drilling and fitting grommets having once fed the wiring up the sill and B post....... again, fiddly and time consuming. Its the small jobs that take the longest I swear!
I had bought a new big bag of pop-rivets in various sizes so I cleaned up the engine build plate and fitted that. Was going to do the Chassis plate too but it seems to be MIA at the moment............!
I then fitted the twin (I prefer 4 jets rather than the feeble 2 in the centre!) washer jets to the new chrome grill and fitted that. I seem to have mislaid the screws for both sides by the windscreen, just need to find what thread they are and get some more.
I then fitted the rear stainless trim. The wing ends were NOS ones, the centre is the original which just needed cleaning and painting. After a trial fit it was time to do it properly the "Mike Weaver" way.......... perfect, all lines up just right. As it should, Brian did borrow the old trims and lights to make sure everything lined up properly before it was painted...... it now has lovely shut lines.
I then fitted all 4 of the interior light door switches and then got the paint brush out. The trimmer had managed to catch and score the paint when he was fitting the vinyl roof. Fortunately it will be hidden behind the rear side stainless steel trims, but I wanted to make sure it was sealed to stop it rusting. I masked it off, painted on 2 coats of primer, and now that I have half a litre of the correct paint, some top coat can go on later.
posted by Alan Chattertonhttp://firstname.lastname@example.org 11th March 2012 7:11pm gmt
What a lovely sunny day today turned out to be! Got the car out of the garage and finished off the n/s front door (got some new clips!) and then started the horrible task of putting the rear doors together. The glass will only just go in one way, and its just remembering which way that is!! Assisted by Bradley as usual, I took the stance that being as he removed the glass from the rear doors, he should remember how to put them back again!! Many hours of swearing and grazed knuckles later....... they are both in and trimmed up. Door locks, winder mechanisms, central locking solenoids, and all the door furniture except the door trims..... bit of rustproofing to do first!
Next job is to fit the estate rear side windowns, finishing wiring the central locking and alarm systems, then finish the outer chrome trim. I think underneath still needs the inner sills shutzing and then we might be ready to start the rustproofing!
Long way to go yet, but slowly and surely................
posted by Alan Chattertonhttp://email@example.com 26th February 2012 7:27pm gmt
N/S Front Door and Central Locking
A few more hours spent on the car yesterday. Got the front nearside door fitted up with glass, locks and catches etc. Had to stop because I had forgotten to buy some new weatherstrip clips for the outer seal! Once those arrive I can put on the outer seal and then lift the window and put in the glass bottom stop. It was a bit quicker than the driver side as I remembered the correct sequence to do things in!! FYI, anyone else who has to do this. Glass channel in, glass in, then roll in the quarterlight so that the channel lines up and picks up the drop glass...... then you can wiggle it around and bolt it up. Channels in last before the bottom stop goes in to allow the glass to drop low enough to get to the channel fixings!
Time to start work on the next mod. Being as the car is an empty shell, now is the easy time to do things. I wanted to fit a remote alarm on the car, with immobilisers and the one I found also came with a retro fit 4 way central locking kit...... bonus. Unpacked it, got my head round how it should work and be fitted then started putting it in. This is the drivers door actuator, hidden in the bottom of the door, with plenty of clearance for dropping th window. New loom goes through the door frame to the A post just by the interior light switch, then the loom goes up behind the dash and across for the other front door, and down the sill to the rear doors. Quite tidy, and nothing will be seen once the trim is back in.
Finished fitting the pedal box too. I fitted this a couple of weeks ago but it just didn't look right. Found out I had managed to trap some wiring behind the pedal box which stopped it sitting flush. Ferreted round under the dash and bolted it in properly, and finished it off with the correct pedal rubbers I had sourced and finding I had bought the wrong ones!
posted by Alan Chattertonhttp://firstname.lastname@example.org 19th February 2012 11:06am gmt
O/S Front Door
I know it doesn't look like much............ but that's about 5 hours work to get all the weather strips in, the glass in, the quarter-light in, the door locks and handles in and the electric motors lined up and wired..............!!
Still, another step closer................................
posted by Alan Chattertonhttp://email@example.com 12th February 2012 5:30pm gmt
Had the call to say that the front Recaro seats were ready the other day. Little road trip down to sunny Bournemouth to collect them today.
If anyone wants any special trimming work doing, I can thoroughly recommend Brian Cates firstname.lastname@example.org He has done wonders with my old horrible seats and they look amazing now. We had discussed several options for restoring the original seats, including keeping them looking as per the original photos....... but in the end we both agreed that it looked silly having grey cloth fronts and black vinyl rears. Having collected some NOS Triumph Vinyl seat covers over the years, he used those to create the centre squabs and the rest was done in standard black vinyl......... leather was tempting but what would it match to?
The new headrests were trimmed to match, and then new Recaro badges to finish them off............. amazing.
Here's a reminder of what they looked like, in the bare bones and what I collected today........................ the photo does not do them justice, they really are stunning............ thanks Brian!!
posted by Alan Chattertonhttp://email@example.com 29th January 2012 10:52pm gmt
Two posts in one day!?!?
Second post of the day?!?!? Well, I thought I had finished for the day, but found another couple of hours this afternoon. So, I did what I wanted and pushed the car out of the garage.............. first time in about 12 months its seen daylight I think!! You could almost see it blinking in the daylight..........!!
Once I'd put the servo back together again (got it upside down before!!) I then fitted it along with the pedal box.
Slight blunder, the new pedal rubbers I have bought appear to be 2 throttle pedals rubbers instead............ new, correct ones ordered now!!
During the clean up I found the missing piece of trim for below the O/S rear door................ quick polish up and on it goes.......... much better.
Not alot done, but every little helps............................
posted by Alan Chattertonhttp://firstname.lastname@example.org 22nd January 2012 5:07pm gmt
On it's wheels!
Managed to get a couple of hours in the garage this morning. Got the two front brake lines fitted. They are different to a 2000/2500 as the offside front one comes under the car and is clipped to the front cross-member before it goes to the PWDA valve on the nearside inner wing. The nearside one is just a short run, double clipped to the other one.
After that, I then torqued up the front suspension, popped the wheels on then admired by how much I had got the tracking out!! Got both wheels now looking like they point in the same direction and then it could come down on its wheels............. first time since last summer it has actually sat on 4 wheels!!
Next job is to push it outside and have a tidy up of the garage and inside the car. I can't find ANYTHING at the moment, so a general clean up is needed. Then I can fit the refurbed pedal box, the servo and master cylinder and then do the brake lines from the M/C to the PWDA valve and the short run to the rear and the brakes will be finished.
I have the centre of the floorplans and the inner sills to Shutz and then underneath will be done and I can start on the trim!
Meanwhile, here is a reminder of the state of the original front Recaro seats....... hmmmmm, tired springs to mind, missing one headrest and one badge and generally had it! So, a couple of weeks ago they went to the trimmers in Bournemouth. Lovely man by the name of Brian Cates, works from home and does classic trim and upholstery. He came up to drop some other trim off in Kidderminster and swung by mine on the way back to collect the seats. I had sourced 2 new headrests, but in black cloth and 2 new Recaro badges. He is going to strip the seats, rebuild them with new foams and then make new covers out of a mixture of black vinyl, black leather and some original Triumph Diamond Vinyl. This will mean the front seats will still be Recaro's but they will now match the rears. He is also going to recover the new headrests to match. They should be ready next weekend hopefully.
In the meantime he sent me a picture of them stripped down...................oooooo, I hope he knows how to put them back together again!!
posted by Alan Chattertonhttp://email@example.com 22nd January 2012 2:48pm gmt
|Views expressed here are personal are not necessarily endorsed by Club Triumph|
viewed 36033 times More from Alan Chatterton
